Array ( [0] => Array ( [id] => 155 [catid] => 48 [userid] => 3 [username] => admin [title] => 16口百兆以太网安防交换机 [title_style] => ;font-weight:bold [keywords] => 16口交换机_以太网交换机_百兆交换机_交换机_交换机图片 [description] => 具有具备16个10/100Base-TX自适应RJ45端口， 端口防雷：4KV 8/20us；防护等级：IP30；待机功耗：＜7W；满载功耗：＜13W，低功耗设计，节能环保。 [content] =>

产品概述

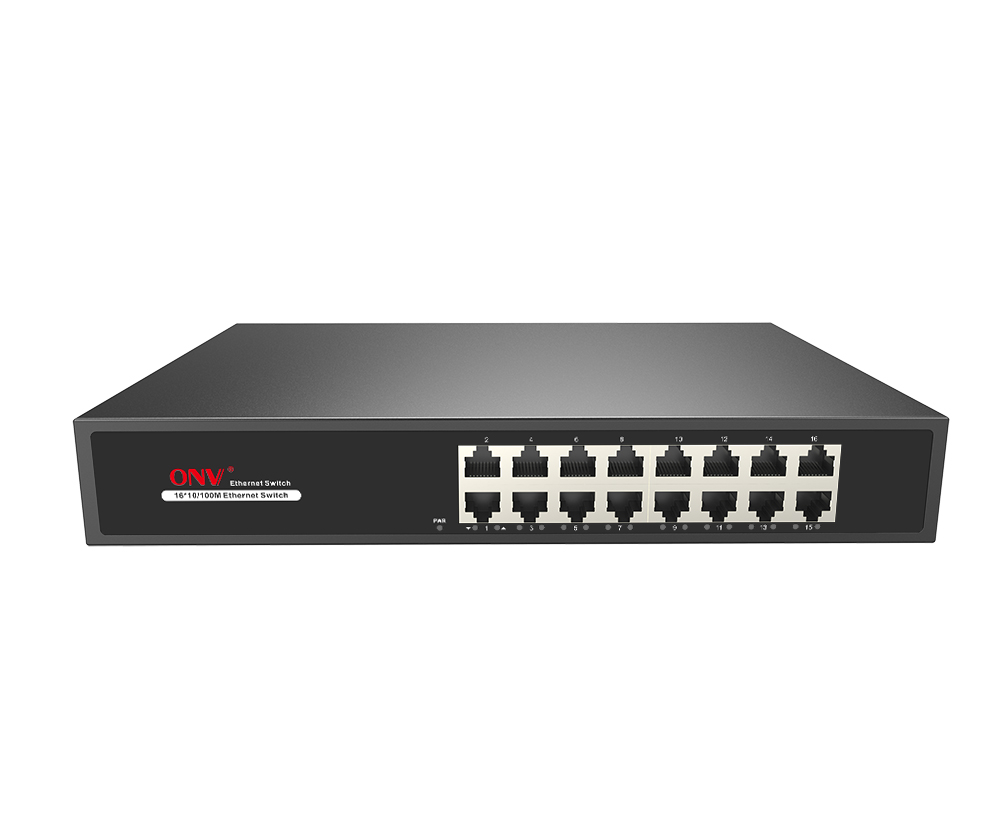

ONV-H1016系列是ONV自主研发的非网管百兆以太网安防交换机，具备16个10/100Base-TX自适应RJ45端口。优选大背板、大缓存交换芯片方案，提高大文件转发速率，并能有效解决高清监控环境中视频卡顿、画面丢失等问题。适合酒店、银行、校园、厂区宿舍及SMB中小型企业组建经济高效的网络。
非网管机型，即插即用，无需配置，使用简单方便。

产品特点
百兆线速传输
◇所有端口支持无阻塞线速转发，传输更流畅。
◇支持IEEE 802.3x全双工流控和Backpressure半双工流控。

设备稳定可靠
◇ 主机低功耗、无风扇散热设计，阻燃环保塑料外壳，小巧美观。
◇ 设备完全符合CE、FCC、RoHS安规要求，使用安全可靠。

操作简单
◇ 即插即用，无需配置，简单方便。
◇ 用户可通过电源指示灯(PWR)、端口状态指示灯（Link/Act）轻松了解设备工作状态。


产品尺寸规格


包装清单

包装清单	物品名称	数量	单位
	16口百兆以太网安防交换机	1	台
	AC电源线	1	套
	快速使用指南	1	份
	保修卡与合格证	1	份

订购信息
